特 點

▪︎ 齒與齒的嚙合消除了傳動系統的打滑失效
▪︎ 無開始發動時的高張力，使負荷非常輕
▪︎ 確定的傳動精度
▪︎ 免維修，無需加以潤滑
▪︎ 耐水、適中的耐油性
▪︎ 適用溫度：-20℃至100℃
▪︎ 經濟型傳動帶

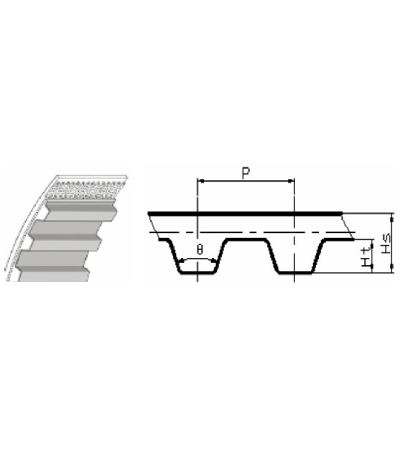

型號	P	Hs	Ht	θ
MXL	2.032mm	1.14	0.51	40°
XL	5.08mm	2.3	1.27	50°
L	9.525mm	3.6	1.91	40°
H	12.7mm	4.3	2.29	40°
XH	22.225mm	11.2	6.35	40°
XXH	31.75mm	15.7	9.53	40°



 規 格 標 記 示 例

200XL075
節線長 200 20英时 508.0mm
帶　型 XL
帶　寬 075 0.75英时 19.05mm
(MXL以齒數表示)

---



MXL 齒節距：2.032mm

皮帶型號	節線長mm	齒數	皮帶型號	節線長mm	齒數	皮帶型號	節線長mm	齒數
*B40MXL	81.28	40	B80MXL	162.56	80	*B122MXL	247.904	122
*B42MXL	85.344	42	*B81MXL	164.592	81	B123MXL	249.935	123
B45MXL	91.44	45	B82MXL	166.621	82	B125MXL	254	125
*B46MXL	91.472	46	B83MXL	168.656	83	B126MXL	256.032	126
*B48MXL	97.536	48	B84MXL	170.688	84	B127MXL	258.064	127
*B49MXL	99.568	49	B85MXL	172.72	85	*B128MXL	260.1	128
B50MXL	101.6	50	*B86MXL	174.752	86	*B129MXL	262.128	129
B52MXL	105.664	52	B87MXL	176.784	87	B130MXL	264.16	130
B53MXL	107.696	53	B88MXL	178.816	88	B131MXL	266.192	131
*B54MXL	109.728	54	*B89MXL	180.848	89	B132MXL	268.224	132
B55MXL	111.76	55	B90MXL	182.88	90	B134MXL	272.288	134
B56MXL	113.792	56	B91MXL	184.912	91	*B135MXL	274.32	135
B57MXL	115.824	57	B92MXL	186.944	92	*B136MXL	276.325	136
B58MXL	117.856	58	B93MXL	188.976	93	B137MXL	278.384	137
*B59MXL	119.888	59	B94MXL	191.008	94	B138MXL	280.416	138
B60MXL	121.92	60	B95MXL	193.04	95	*B139MXL	282.448	139
B61MXL	123.952	61	B97MXL	197.104	97	B140MXL	284.48	140
*B62MXL	125.984	62	B98MXL	199.136	98	B142MXL	288.544	142
*B63MXL	128.016	63	B100MXL	203.2	100	B144MXL	292.608	144
B64MXL	130.048	64	*B101MXL	205.232	101	*B145MXL	294.64	145
B65MXL	132.08	65	B102MXL	207.264	102	+B146MXL	296.672	146
B67MXL	136.144	67	B103MXL	209.296	103	B148MXL	300.736	148
B68MXL	138.176	68	*B104MXL	211.328	104	B149MXL	302.768	149
*B69MXL	140.208	69	B105MXL	213.36	105	B150MXL	304.8	150
B70MXL	142.24	70	B106MXL	215.392	106	B151MXL	306.832	151
B71MXL	144.272	71	*B107MXL	217.424	107	B153MXL	310.896	153
B72MXL	146.304	72	*B109MXL	221.488	109	*B154MXL	312.928	154
B73MXL	148.336	73	B110MXL	223.52	110	B155MXL	314.96	155
*B74MXL	150.368	74	B112MXL	227.581	112	*B156MXL	316.992	156
B75MXL	152.4	75	+B113MXL	229.616	113	B158MXL	321.056	158
B76MXL	154.432	76	*B114MXL	231.648	114	B160MXL	325.12	160
*B77MXL	156.464	77	B115MXL	233.68	115	+B161MXL	327.152	161
B78MXL	158.496	78	B118MXL	239.776	118	B162MXL	329.184	162
*B79MXL	160.528	79	B120MXL	243.81	120	*B163MXL	331.216	163



皮帶型號	節線長mm	齒數	皮帶型號	節線長mm	齒數	皮帶型號	節線長mm	齒數
B165MXL	335.28	165	*B273MXL	554.736	273	*B420MXL	853.44	420
*B167MXL	339.344	167	*B275MXL	558.8	275	*B421MXL	855.472	421
*B169MXL	343.408	169	B280MXL	568.96	280	*B424MXL	861.568	424
B170MXL	345.44	170	B285MXL	279.12	285	*B425MXL	863.6	425
*B171MXL	347.472	171	*B288MXL	585.216	288	*B427MXL	867.664	427
*B175MXL	355.6	175	B290MXL	589.28	290	*B431MXL	875.792	431
*B177MXL	359.664	177	*B295MXL	599.44	295	*B434MXL	881.888	434
B180MXL	365.76	180	*B298MXL	605.536	298	*B435MXL	883.92	435
B183MXL	373.888	183	B300MXL	609.6	300	*B440MXL	894.08	440
B186MXL	377.952	186	*B305MXL	619.76	305	*B442MXL	898.144	442
B190MXL	386.08	190	*B310MXL	629.92	310	*B447MXL	908.304	447
*B192MXL	390.144	192	B312MXL	633.981	312	*B448MXL	910.336	448
B194MXL	394.208	194	*B315MXL	640.08	315	B453MXL	920.496	453
B195MXL	396.24	195	*B318MXL	646.176	318	*B458MXL	930.656	458
B200MXL	406.4	200	B322MXL	654.304	322	*B463MXL	940.816	463
B205MXL	416.56	205	*B323MXL	656.336	323	*B464MXL	942.848	464
*B208MXL	422.656	208	*B324MXL	658.368	324	*B466MXL	946.912	466
B210MXL	426.72	210	*B325MXL	660.4	325	B472MXL	950.104	472
*B212MXL	430.784	212	*B328MXL	666.496	328	*B475MXL	965.2	475
B216MXL	438.912	216	*B330MXL	670.56	330	*B482MXL	979.424	482
*B220MXL	447.04	220	B332MXL	674.624	332	*B487MXL	989.584	487
B221MXL	449.072	221	*B334MXL	678.688	334	*B488MXL	991.616	488
*B222MXL	451.104	222	*B337MXL	684.784	337	*B490MXL	995.68	490
*B224MXL	455.168	224	*B339MXL	688.848	339	*B497MXL	1009.904	497
*B225MXL	457.2	225	*B340MXL	690.88	340	*B498MXL	1011.936	498
*B228MXL	463.296	228	*B342MXL	694.944	342	*B500MXL	1016	500
*B229MXL	465.328	229	*B343MXL	696.976	343	B522MXL	1060.704	522
*B230MXL	467.36	230	*B347MXL	705.104	347	*B532MXL	1081.024	532
*B232MXL	471.424	232	B350MXL	711.2	350	*B535MXL	1087.12	535
*B235MXL	477.52	235	*B354MXL	719.328	354	*B537MXL	1091.184	537
*B236MXL	479.552	236	*B356MXL	723.392	356	*B540MXL	1097.28	540
*B239MXL	485.648	239	*B358MXL	727.456	358	*B546MXL	1109.472	546
B240MXL	487.68	240	*B360MXL	731.52	360	*B548MXL	1113.536	548
*B243MXL	493.776	243	*B365MXL	741.68	365	*B571MXL	1160.272	571
*B245MXL	497.84	245	*B371MXL	753.872	371	*B591MXL	1200.912	591
*B248MXL	503.94	248	*B372MXL	755.904	372	*B592MXL	1202.944	592
*B249MXL	505.968	249	*B380MXL	772.16	380	*B612MXL	1243.584	612
B250MXL	508	250	*B388MXL	788.414	388	*B648MXL	1316.736	648
*B251MXL	510.032	251	*B390MXL	792.48	390	+B760MXL	1544.32	760
*B256MXL	520.192	256	*B397MXL	806.704	397	+B1012MXL	2056.38	1012
B260MXL	528.32	260	*B400MXL	812.8	400	+B1060MXL	2153.92	1060
*B262MXL	532.384	262	*B402MXL	816.864	402	+B1137MXL	2310.38	1137
B265MXL	538.48	265	*B408MXL	829.056	408	+B1463MXL	2972.82	1463
*B267MXL	542.544	267	*B412MXL	837.184	412	+B1778 MXL	3612.896	1778
*B271MXL	550.672	271	*B419MXL	851.408	419



XL 齒節距：5.08mm

皮帶型號	節線長mm	齒數	皮帶型號	節線長mm	齒數	皮帶型號	節線長mm	齒數
*42XL	106.68	21	138XL	350.52	69	226XL	574.04	113
*50XL	127	25	140XL	355.6	70	228XL	579.12	114
54XL	137.16	27	142XL	360.68	71	230XL	584.2	115
*56XL	142.24	28	144XL	365.76	72	*232XL	589.28	116
*58XL	147.32	29	146XL	370.84	73	234XL	594.36	117
60XL	152.4	30	148XL	375.92	74	236XL	599.44	118
*62XL	157.48	31	150XL	381	75	240XL	609.6	120
*64XL	162.56	32	152XL	386.08	76	*244XL	619.76	122
*66XL	167.64	33	154XL	391.16	77	*246XL	624.84	123
*68XL	172.72	34	156XL	396.24	78	*248XL	629.92	124
70XL	177.8	35	158XL	401.32	79	250XL	635	125
*72XL	182.88	36	160XL	406.4	80	*254XL	645.16	127
*74XL	187.96	37	162XL	411.48	81	*258XL	655.32	129
76XL	193.04	38	164XL	416.56	82	260XL	660.4	130
78XL	198.12	39	166XL	421.64	83	262XL	665.48	131
80XL	203.2	40	168XL	426.72	84	264XL	670.56	132
*82XL	208.28	41	170XL	431.8	85	266XL	675.64	133
84XL	213.36	42	172XL	436.88	86	268XL	680.72	134
*86XL	218.44	43	174XL	441.96	87	270XL	685.8	135
*88XL	223.52	44	176XL	447.04	88	274XL	695.96	137
90XL	228.6	45	178XL	452.12	89	+276XL	701.04	138
92XL	233.68	46	180XL	457.2	90	278XL	706.12	139
94XL	238.76	47	182XL	462.28	91	280XL	711.2	140
96XL	243.84	48	184XL	467.36	92	284XL	721.36	142
98XL	248.92	49	186XL	472.44	93	286XL	726.44	143
100XL	254	50	188XL	477.52	94	290XL	736.6	145
102XL	259.08	51	190XL	482.6	95	*296XL	751.84	148
104XL	264.16	52	192XL	487.68	96	300XL	762	150
106XL	269.24	53	194XL	492.76	97	*302XL	767.08	151
108XL	274.32	54	196XL	497.84	98	+304XL	772.16	152
110XL	279.4	55	198XL	502.92	99	306XL	777.24	153
*112XL	284.48	56	200XL	508	100	310XL	787.4	155
114XL	289.56	57	202XL	513.08	101	+314XL	797.56	157
116XL	294.64	58	204XL	518.16	102	316XL	802.64	158
118XL	299.72	59	206XL	523.24	103	320XL	812.8	160
120XL	304.8	60	208XL	528.32	104	322XL	817.88	161
122XL	309.88	61	210XL	533.4	105	330XL	838.2	165
124XL	314.96	62	212XL	538.48	106	*332XL	843.28	166
126XL	320.04	63	214XL	543.56	107	+336XL	853.44	168
128XL	325.12	64	+216XL	548.64	108	338XL	858.52	169
130XL	330.2	65	*218XL	553.72	109	340XL	863.6	170
132XL	335.28	66	*220XL	558.8	110	*344XL	873.76	172
134XL	340.36	67	*222XL	563.88	111	348XL	883.92	174
136XL	345.44	68	*224XL	568.96	112	350XL	889	175



皮帶型號	節線長mm	齒數	皮帶型號	節線長mm	齒數
352XL	894.08	176	+510XL	1295.4	255
356XL	904.24	178	*522XL	1325.88	261
360XL	914.4	180	*524XL	1330.96	262
362XL	919.48	181	*532XL	1351.28	266
364XL	924.56	182	*540XL	1371.6	270
370XL	939.8	185	*554XL	1407.16	277
372XL	944.88	186	*560XL	1422.4	280
376XL	955.04	188	+564XL	1432.56	282
380XL	965.2	190	*570XL	1447.8	285
*382XL	970.28	191	+576XL	1463.04	288
384XL	975.36	192	*580XL	1473.2	290
*386XL	980.44	193	*592XL	1503.68	296
390XL	990.6	195	612XL	1554.48	306
*392XL	995.68	196	630XL	1600.2	315
*396XL	1005.84	198	*648XL	1645.92	324
400XL	1016	200	670XL	1701.8	335
404XL	1026.16	202	*672XL	1706.88	336
412XL	1046.48	206	*690XL	1752.6	345
+414XL	1051.56	207	+700XL	1778	350
420XL	1066.8	210	+710XL	1803.4	355
424XL	1076.96	212	*736XL	1869.44	368
+430XL	1092.2	215	+754XL	1915.16	377
432XL	1097.28	216	*770XL	1955.8	385
434XL	1102.36	217	*810XL	2057.4	405
*438XL	1112.52	219	+828XL	2103.12	414
*444XL	1127.76	222	*850XL	2159	425
450XL	1143	225	*860XL	2184.4	430
*454XL	1153.16	227	*888XL	2255.52	444
460XL	1168.4	230
*468XL	1188.72	234
470XL	1193.8	235
480XL	1219.2	240
490XL	1244.6	245
498XL	1264.92	249
*500XL	1270	250
506XL	1285.24	253



L 齒節距：9.525mm

皮帶型號	節線長mm	齒數	皮帶型號	節線長mm	齒數
98L	247.65	26	248L	628.65	66
+100L	257.175	27	*251L	638.175	67
109L	276.225	29	255L	647.7	68
124L	314.325	33	259L	657.225	69
*131L	333.375	35	263L	666.75	70
135L	342.9	36	270L	685.8	72
150L	381	40	+275L	695.325	73
154L	390.525	41	277L	704.85	74
+160L	400.05	42	+280L	714.375	75
165L	419.1	44	285L	723.9	76
169L	428.625	45	300L	762	80
172L	438.15	46	304L	771.525	81
*176L	447.675	47	315L	800.1	84
+180L	457.2	48	320L	809.625	85
187L	476.25	50	322L	819.15	86
+191L	485.775	51	+330L	838.2	88
195L	495.3	52	334L	847.725	89
203L	514.35	54	337L	857.25	90
206L	523.875	55	+341L	866.775	91
210L	533.4	56	345L	876.3	92
218L	552.45	58	352L	895.35	94
+220L	561.975	59	360L	914.4	96
225L	571.5	60	367L	933.45	98
+230L	581.025	61	375L	952.5	100
232L	590.55	62	+382L	971.55	102
236L	600.075	63	390L	990.6	104
240L	609.6	64	394L	1000.125	105
244L	619.125	65	405L	1028.7	108
皮帶型號	節線長mm	齒數	皮帶型號	節線長mm	齒數
420L	1066.8	112	619L	1571.625	165
427L	1085.85	114	630L	1600.2	168
+430L	1095.375	115	660L	1676.4	176
436L	1104.9	116	+694L	1762.125	185
439L	1114.425	117	+697L	1771.65	186
442L	1123.95	118	720L	1828.8	192
446L	1133.475	119	728L	1847.85	194
450L	1143	120	*731L	1857.375	195
*461L	1171.575	123	+739L	1876.425	197
465L	1181.1	124	+765L	1943.1	204
480L	1219.2	128	+769L	1952.625	205
510L	1295.4	136	+780L	1981.2	208
+514L	1304.925	137	+806L	2047.875	215
525L	1333.5	140	817L	2076.45	218
541L	1371.6	144	+855L	2171.7	228
548L	1390.65	146	863L	2190.75	230
+555L	1409.7	148	+881L	2238.375	235
*566L	1438.275	151	900L	2286	240
570L	1447.8	152	*915L	2324.1	244
*578L	1466.85	154	+994L	2524.125	265
581L	1476.375	155	+1043L	2647.95	278
600L	1524	160	*1275L	3238.5	340



H 齒節距：12.7mm

皮帶型號	節線長mm	齒數	皮帶型號	節線長mm	齒數	皮帶型號	節線長mm	齒數
+185H	469.9	37	480H	1219.2	96	800H	2032	160
*205H	520.7	41	*485H	1231.9	97	810H	2057.4	162
210H	533.4	42	490H	1244.6	98	820H	2082.8	164
220H	558.8	44	*495H	1257.3	99	+830H	2108.2	166
225H	571.5	45	+500H	1270	100	840H	2133.6	168
230H	584.2	46	510H	1295.4	102	850H	2159	170
240H	609.6	48	+515H	1308.1	103	+860H	2184.4	172
250H	635	50	520H	1320.8	104	880H	2235.2	176
255H	647.7	51	525H	1333.5	105	*885H	2247.9	177
+260H	660.4	52	+530H	1346.2	106	900H	2286	180
270H	685.8	54	540H	1371.6	108	950H	2413	190
280H	711.2	56	+550H	1397	110	960H	2438.4	192
+285H	723.9	57	*555H	1409.7	111	+980H	2489.2	196
300H	762	60	560H	1422.4	112	+985H	2501.9	197
*305H	774.7	61	565H	1435.1	113	1000H	2540	200
310H	787.4	62	570H	1447.8	114	1020H	2590.8	204
315H	800.1	63	580H	1473.2	116	*1040H	2641.6	208
320H	812.8	64	585H	1485.9	117	+1050H	2667	210
*325H	825.5	65	+590H	1498.6	118	+1070H	2717.8	214
330H	838.2	66	600H	1524	120	1100H	2794	220
340H	863.6	68	605H	1536.7	121	1120H	2844.8	224
+345H	876.3	69	+610H	1549.4	122	1130H	2870.2	226
350H	889	70	615H	1562.1	123	1140H	2895.6	228
360H	914.4	72	630H	1600.2	126	+1150H	2921	230
370H	939.8	74	640H	1625.6	128	+1160H	2946.4	232
375H	952.5	75	645H	1638.3	129	1180H	2997.2	236
+380H	965.2	76	+650H	1651	130	+1200H	3048	240
+385H	977.9	77	655H	1663.7	131	+1205H	3060.7	241
390H	990.6	78	660H	1676.4	132	1250H	3175	250
395H	1003.3	79	+670H	1701.8	134	1325H	3365.5	265
400H	1016	80	680H	1727.2	136	*1345H	3416.3	269
+405H	1028.7	81	+690H	1752.6	138	1350H	3429	270
410H	1041.4	82	700H	1778	140	1400H	3556	280
*415H	1054.1	83	+710H	1803.4	142	*1460H	3708.4	292
420H	1066.8	84	+720H	1828.8	144	1510H	3835.4	302
+425H	1079.5	85	+725H	1841.5	145	1550H	3937	310
430H	1092.2	86	730H	1854.2	146	+1560H	3962.4	312
440H	1117.6	88	+740H	1879.6	148	1645H	4178.3	329
445H	1130.3	89	750H	1905	150	1680H	4267.2	336
450H	1143	90	+760H	1930.4	152	1700H	4318	340
*455H	1155.7	91	+770H	1955.8	154	+2010H	5105.4	402
+460H	1168.4	92	775H	1968.5	155	*2330H	5918.2	466
465H	1181.1	93	780H	1981.2	156
+470H	1193.8	94	+790H	2006.6	158



XH 齒節距：22.225mm

皮帶型號	節線長mm	齒數
*481XH	1222.375	55
507XH	1289.05	58
560XH	1422.4	64
+570XH	1444.625	65
+580XH	1466.85	66
630XH	1600.2	72
*647XH	1644.65	74
700XH	1778	80
735XH	1866.9	84
+752XH	1911.35	86
+761XH	1933.575	87
770XH	1955.8	88
780XH	1978.025	89
*787XH	2000.25	90
+800XH	2022.475	91
+820XH	2089.15	94
*831XH	2111.375	95
840XH	2133.6	96
+870XH	2200.275	99
*875XH	2222.5	100
*910XH	2311.4	104
*927XH	2355.85	106
980XH	2489.2	112
+1000XH	2533.65	114
*1085XH	2755.9	124
1120XH	2844.8	128
*1172XH	2978.15	134
*1216XH	3111.5	140
1260XH	3200.4	144
1400XH	3556	160
+1496XH	3800.475	171
1540XH	3911.6	176
*1680XH	4267.2	192
1750XH	4445	200
+1925XH	4889.5	220



XXH 齒節距：31.75mm



皮帶型號	節線長mm	齒數
700XXH	1778	56
800XXH	2032	64
900XXH	2286	72
1000XXH	2540	80
1200XXH	3048	96
1400XXH	3556	112
1600XXH	4060	128
1800XXH	4572	144
*700XXH	6858	216



● 標示*為美國GATES品牌之規格
● 標示+為德國CONTITECH品牌之規格
●不帶標記為美國GATES與德國CONTITECH品牌共有之規格
